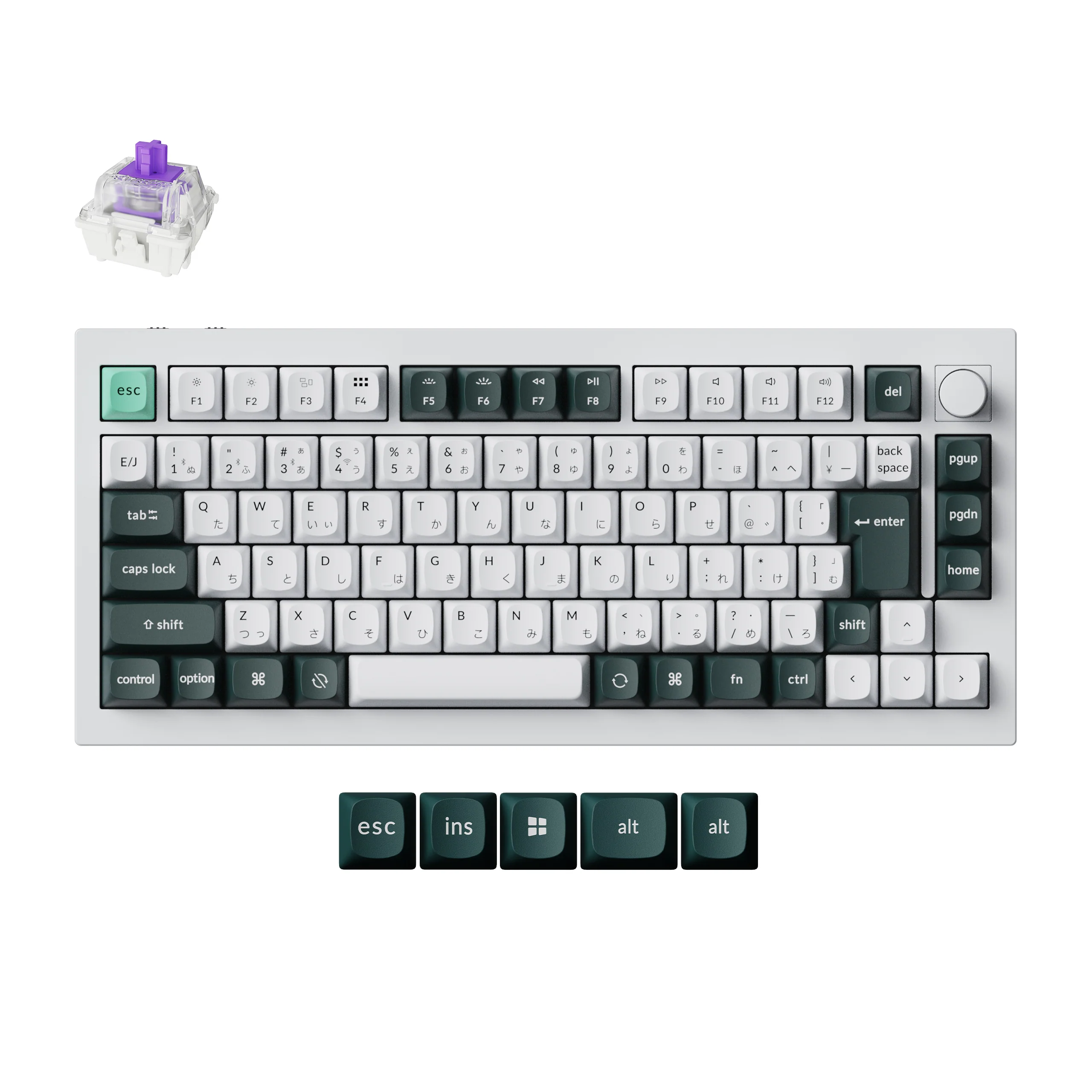

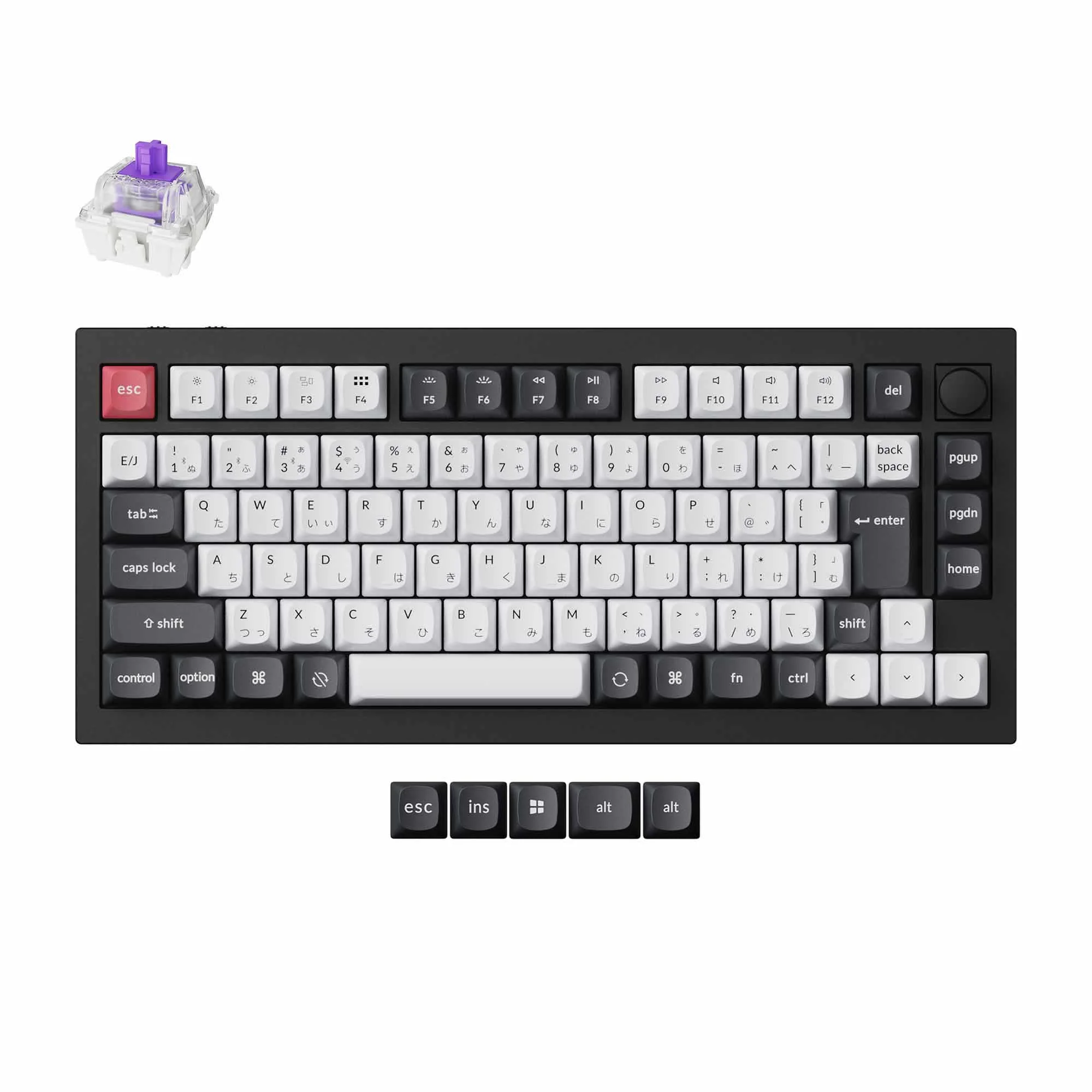

Keychron Q1 HE QMK Wireless Custom Keyboard (Japan JIS Layout)

Keychron Q1 HE is a full metal QMK wireless keyboard with Magnetic Hall Effect switches. These switches offer precise actuation, rapid trigger, and adjustable actuation points. Connect the Q1 HE with up to 3 devices through Bluetooth for seamless multitasking across Mac, Windows, and Linux.

Key specs

• Layout: 75%, with knob
• Connectivity: 2.4 GHz, Bluetooth (up to 3 devices); 1000 Hz polling rate
• Switches: Gateron Double-Rail Magnetic Nebula Switch; hot-swappable
• Magnetic switch features: Rapid Trigger, adjustable actuation 0.2 - 3.8 mm, Dynamic Keystrokes (4-in-1 action keys)
• Build: Aluminum, gasket mount
• Keycaps: OSA Double-shot keycaps, not shine-through
• Software: QMK firmware; Keychron Launcher web app for key remapping and macros; works with macOS, Windows, Linux
• Battery: 4000 mAh, up to 100 hours
• Backlight: South-facing RGB LED
• Weight: 1735 g ± 10 g (Fully Assembled version)
• N-key rollover: Yes for both wireless and wired modes

What's in the box

The Fully Assembled version includes:

• The keyboard PCB, the case, and the aluminum plate.
• Keycaps (included Mac & Windows keycaps).
• Adjustable-actuation-point Gateron double-rail magnetic switches.

Product details

The Q1 HE is compatible exclusively with the Gateron Double-Rail Magnetic Switch. It does not support other magnetic switches such as the Gateron Magnetic Jade or Gateron KS-20 Magnetic switches.

Notes

No discount codes can be used for the Q1 HE.
